USB Microscope MV1302u
id: 815627
0.35 kg Warranty: 6 months
Small and easy to use handheld color digital microscope with USB interface. Supports measurement, conservation, copy, transfer image and video. Read more
Buy wholesale and save
MiView USB Microscope is an exciting new device that it is an amazing and easy to use handheld color digital microscope with USB interface. It broke the conception of traditional microscope, it realized these functions: measurement, conservation, copy, transfer image and video which are difficult for a traditional microscope. It is a small, easy to operate and portable fun.
Abundant application scopes:
- Industrial Inspection
- Electronics/mechanical assembly and quality control
- Medical analysis
- Scientific teaching tool
- School Research tool
- Printing Inspection
- Textile inspection
- Dermatology(skin/scalp)exam
- Insect dissection/observing
- Plant dissection/observing
- Collections/Curio/Jewelry Inspection
- Reading aide
Product Specifications
Model | MV1302U(USB Digital Microscope) |
Camera Type | Color CMOS Camera |
Sensor | 1/4"Imax CMOS |
Resolution | 1.30M Pixel |
Image pixel | 320(H)x240(V), 640(H)x480(V), 1280(H)x1024(V) |
Illumination | 8pcs white adjustable LEDs |
Frame rate | 15fps@1280x1024,30fps@640x480, 30fps@320x240 |
Optical features | Gamma Correction: Auto |
Numerical Aperture: Auto | |
Exposure: Auto | |
White Balance: Auto | |
Black Reference: Auto | |
Flicker Avoidance: Auto | |
Defect Identification: Auto | |
Color Saturation: Auto | |
Signal Interface | USB 2.0/1.1 |
Power Source | USB5.0V DC |
Power Consumption | 0.75W MAX |
Adjustable Magnification | 10x~200x |
Object Distance | 0~200mm |
USB Line | 2m |
Dimension | 36mm(Diameter) x 120mm(Length) |
Software Features | Snapshot |
Video recorder | |
Take time lapsed Picture | |
Additional Cross Line,Scale,Timer | |
Measurement:length,area,diameter,angle |
Features
- Handheld digital microscope.
- High speed access: USB2.0
- High resolution up to 1.30M Pixel:Excellent images
- Independently developed display software:Snapshot, Video record, Measure etc
- You can see the picture clearly in full screen of your PC

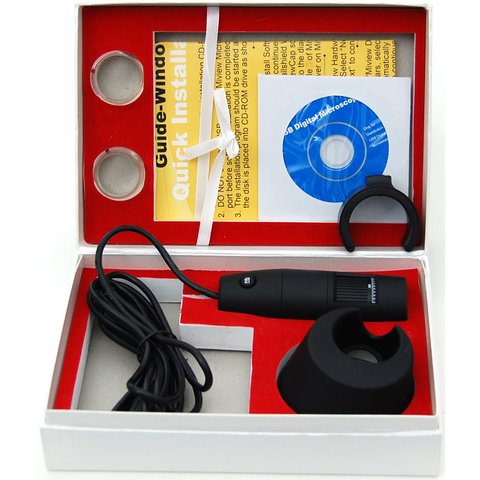

Package
- 1pcs USB Microscope
- Application software CD
- User manual
- 1pcs Stand+ 2pcs transparent covers
Minimum System requirement
- Pentium III 600MHZ and 256MB RAM Above
- Windows XP SP2/Vista
- Available USB1.1/2.0 port
- Recommended 17" PC Display
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
